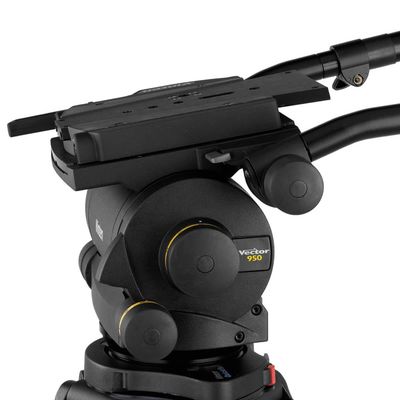

VECTOR 950
The compact and durable Vector 950 head incorporates a wealth of features. Set-up is aided through the inclusion of a tilt deadlock, Quick-fix groove in the base, retractable carry handle and illuminated controls, as well as an LCD display that offers a 24 hour clock, stopwatch and counter-balance readout.
DETAILS:
Height:
24.8 cm / 9.8 "
Length:
22.5 cm / 8.9 "
Width:
34.2 cm / 13.5 "
Weight:
16.6 kg / 36.6 lbs
Capacity Range:
16 to 120 kg / 35 to 264.5 lbs
Tilt Range:
±90° @ 60 kg / 132.3 lbs
±60° @ 120 kg / 264.5 lbs
VECTOR 750
The Vector 750 has taken the functionality and durability of the acclaimed 700 and 700h versions and incorporated them into one versatile new product. Features include an improved slide plate positioner.
DETAILS:
Height:
255mm (10ins)
Length:
355mm (14ins)
Width:
350mm (13.5ins)
Weight:
18kg
Tilt range:
±52 degrees
Capacity:
75kg
VECTOR 430
The Vector 430 is aimed at applications that use both compact box lens and large EFP barrel lenses. Its unique design has enabled Perfect Balance to be incorporated into a previously unattainable compact and lightweight package whilst providing an extremely large capacity range of 10 - 43 kg.
Simple to rig and convenient to transport, the compact design of the Vector 430 maintains the functionality associated with Vinten’s renowned Vector heads, including infinitely adjustable Perfect Balance and smooth TF drag technology.
DETAILS:
Height:
200mm (7.9ins)
Length:
200mm (7.9ins)
Width:
28.5mm (11.2ins)
Weight:
12.1kg
Tilt range:
±90 degrees
VISION 250
The Vision 250 pan & tilt head is designed to support lighter-weight camera combinations used in both studio and outside broadcast production.
The 250 has the benefit of digital counterbalance readout, back-lit drag controls and illuminated leveling bubble enabling the quickest and most simple set up.
*Available as a kit with compatible tripod
DETAILS:
Height:
170mm (6.7ins)
Length:
159mm (6.3ins)
Width:
244mm (9.6ins)
Weight:
6.1kg
Tilt range:
±90 degrees
Capacity range:
10 to 33kg
VISION 100
The Vinten Vision 100 is perfect for all professional ENG or EFP situations that demand total reliability and control excellence.
Combining Perfect Balance with the innovative TF drag system, the Vision 100 allows total control and consistent performance in the toughest conditions. Following the action is effortless even at the heaviest drag setting and regardless of the environment.
The Vision 100 also includes illuminated drag controls and a digital counterbalance readout, ensuring simple and repeatable camera set–up in any lighting situation
DETAILS:
Height:
150mm (5.9ins)
Length:
148mm (5.8ins)
Width:
172mm (6.8ins)
Weight:
3.2kg
Tilt range:
±90 degrees
Capacity range:
7 to 20kg
o'connor 2560
The O’Connor 2560 is perfectly suited to the adaptable, a la carte configurations of accessorised digital cinematography. Cameras such as the Alexa in portable configuration or any lightweight digital cinema camera (from Sony, Canon, ARRI, AJA, JVC, Panasonic, Vision Research, RED) in ‘maxed out’ studio configuration. Available with 150mm bowl, Vinten 4-Bolt or O'Connor mount.
O’Connor Ultimate heads have been used on almost every Hollywood movie feature and episodic TV Drama since the early 1990’s and O’Connor heads in general have been heavily utilised in the industry since 1949.
DETAILS:
Height:
203mm (8ins)
Length:
191mm (7.5ins)
Width:
287mm (11.3ins)
Weight:
7.3kg
Tilt range:
±90 degrees
Capacity range:
@102mm – 37.7kg
@152mm – 29.5kg
@203mm – 24.1kg
