Osprey Elite

The elite is one of the most versatile pedestals, able to support the latest range of digital, portable and full facility cameras for studio or field production and OB use.

The elite has an exceptional combination of lightness and structural integrity while still allowing the column and dolly to be dismantled and folded for easy transportation.

Height range:
(Floor to head mounting face)
Min 660mm (26ins)
Max 1430mm (56ins)

‘On-shot’ stroke:
770mm (30ins)

Weight:
46kg

Doorway tracking width:
970mm (38ins)

Transit doorway width:
860mm (34ins)

Narrow doorway width:
700mm (27ins)

Wheel diameter:
125mm (5ins)

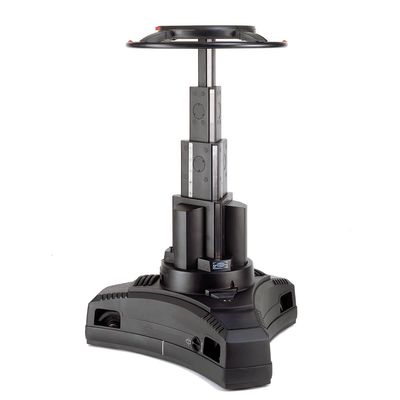

The Quattro-OB pedestal has been designed to offer absolute rigidity and an unrivaled height range. The four-stage column uses a low-pressure pneumatic system to offer perfect balance throughout the range.

Height range:
(Floor to head mounting face)
Min 498mm (19.6ins)
Max 1498mm (59ins)

‘On-shot’ stroke:
1000mm (39.4ins)

Weight:
116kg

Doorway tracking width:
980mm (38.5ins)

Transit doorway width:
870mm (34.2ins)

Wheel diameter:
200mm (7.8ins)

Steering ring diameter:
590mm (23.2ins)

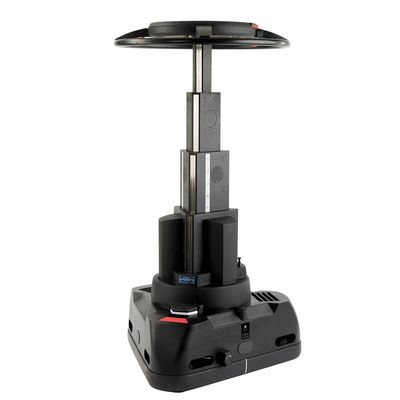

The latest four stage pedestal from Vinten for studio use, available in black, the Quattro-L is a high performance 4-stage studio pedestal capable of handling a wide range of studio cameras, providing an extensive on-shot movement capability with full crab and steer functionality. The Quattro-L has an excellent height range and an ability to achieve creative lower angle shots.

 Height range:
(Floor to head mounting face)
Min 452mm (17.8ins)
Max 1480mm (58.2ins)

‘On-shot’ stroke:
1000mm (39.4ins)

Weight:
158kg

Doorway tracking width:
1070mm (42ins)

Transit doorway width:
924mm (36.4ins)

Narrow doorway width:
830mm (33ins)

Wheel diameter:
160mm (6.3ins)

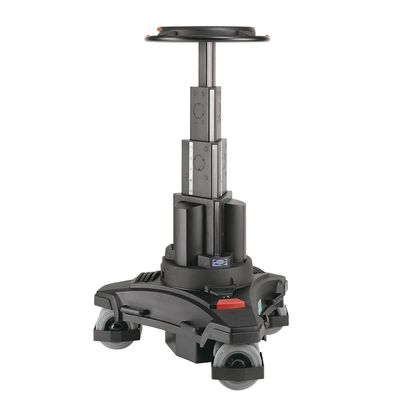

The small based pedestal from Vinten for studio use, available in black, the compact Quattro-SL easily tracks through confined spaces and is ideal for use in smaller studios.

Height range:
(Floor to head mounting face)
Min 470mm (18.5ins)
Max 1470mm (57.8ins)

‘On-shot’ stroke:
1000mm (39.4ins)

Weight:
150kg

Doorway tracking width:
810mm (2ins)

Transit doorway width:
820mm (32.3ins)

Narrow doorway width:
745mm (29.3ins)

A static base for use in confined locations such as sports and concert venues. The Osprey column can be removed for split transportation.

Height range:
(Floor to head mounting face)
Min 660mm (26ins)
Max 1422mm (56ins)

‘On-shot’ stroke:
762mm (30ins)

Weight:
26kg

Footprint:
590mm (23.5ins) squared

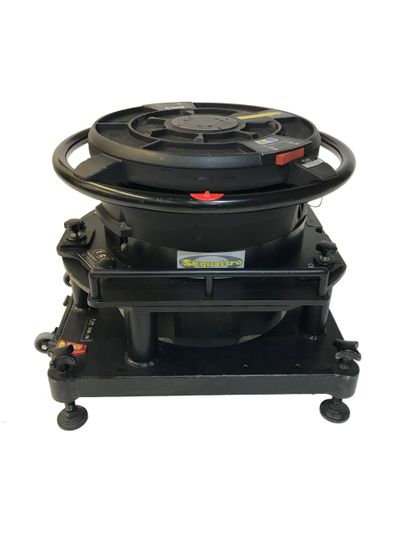

A static base Quattro for use in confined locations such as sports and concert venues.

Height range:
(Floor to head mounting face)
Min 540mm (21ins)
Max 1530mm (60ins)

Capacity:
100kg

Footprint:
610mm (24ins)

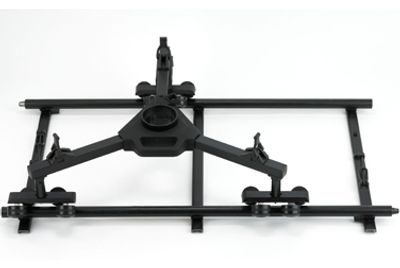

The Tracking Dolly is designed to offer the complete range of Osprey pedestals and HD Tripods the ability to operate on track.

Height range:
(Floor to head mounting face)
Min 660mm (26ins)
Max 1430mm (56ins)

‘On-shot’ stroke:
770mm (30ins)

Weight:
46kg

Doorway tracking width:
970mm (38ins)

Transit doorway width:
860mm (34ins)

Narrow doorway width:
700mm (27ins)

Wheel diameter:
125mm (5ins)

Steering ring diameter:
535mm (21ins)
