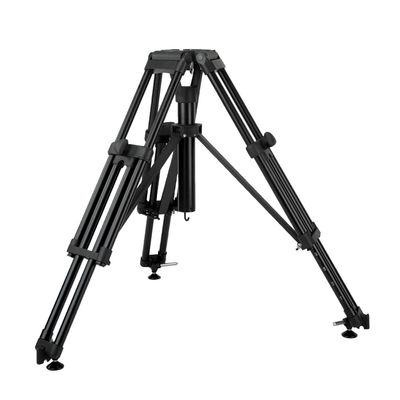

EFP TWO STAGE TRIPOD

EFP tripods have been designed to offer maximum stability and robustness and are ideal for demanding field and studio applications where a longer lens and heavier viewfinder are used.

Height range:
(Floor to head mounting face)
Min with spreader 500mm (19.5ins)
Max with spreader 1600mm (62ins)

Weight:
5kg

Load capacity:
45kg

Levelling bowl diameter:
150mm

Designed to support all the latest studio and outside broadcast camera and lens combinations these heavy duty tripods have increased torsional rigidity with the use of multi-tube design and improved geometry of the legs.

Model No. :3901-3 HDT-1 Single-Stage Tripod

Height Range: 59 to 123 cm / 23.2 to 48.4 "

Transport Length: 78 cm / 30.7 "

Weight: 13.9 kg / 30.6 lbs

Max. Capacity: 140 kg / 308.6 lbs

*HDT-1 Tripod also available with elevator unit

Model No.:3902-3 HDT-2 Two-Stage Tripod

Height Range: 51.1 to 146 cm / 20.1 to 57.5 "

Transport Length: 73 cm / 28.7 "

Weight: 15.6 kg / 34.4 lbs

Max. Capacity: 120 kg / 264.5 lbs

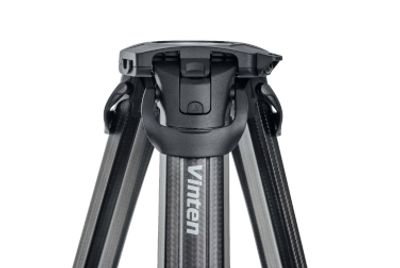

flowtech™100 2-stage 100 mm lightweight carbon fiber tripod for heavy duty payloads.  Unique quick release brakes for instant and easy deployment; carbon fiber mid-level spreader with four locking positions for simple setup of different footprints.

Payload:

30 kg (66 lbs)

Tripod bowl:

100 mm

Material:

Carbon fiber

Weight:

3.2 kg (7.01 lbs),

including spreader and feet = 4.1 kg ( 9.04 lbs)

Height range min to max:

Spreaderless mode 26 - 153 cm (10.2 - 60.2 in)

Mid-level spreader mode 52 - 155 cm (20.5 - 61 in)

Transport length:

68 cm

Extension: 2x:

2x

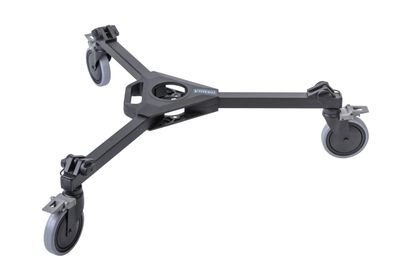

Designed to be lightweight and compact Vinten dollies fold and include an integral carry handle for easy transportation.

All feature fast action foot operated brakes and in addition the Studio configuration includes both cable guards and track locks.
